Microgrid - 666 kWp/832 kWh - Robben Island

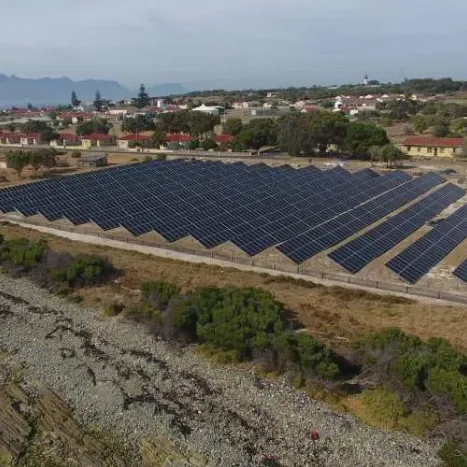

A fully standalone hybrid PV and Lithium Ion Battery System, the project consists of a 567kWp ground mounted PV system, coupled to the island’s grid infrastructure. The grid is energised by a battery inverter which will schedule the injection of energy from the PV, battery and diesel. A combination of tourism, desalination plant and local community means that Robben Island uses over 2 Million kWh of electricity annually. The solar microgrid consists of several elements that will produce almost 1Million kWh of electricity annually, significantly reducing costs of buying diesel, ferrying it to the island and burning it for electricity generation. The solar microgrid uses the most abundant resource on the island – the sun – and converts this energy seamlessly into electricity, which can be used for operations. In combination, the battery system stores any excess energy produced by the sun, for use during the night or on cloudy days. If both the battery system and the sun are low, the smart microgrid controllers trigger the diesel generators to start up, ensuring that the island never experiences energy shortages or blackouts. In the Robben Island Microgrid, there are three key power production aspects. The first of these is a solar farm, consisting of 1960 mono-crystalline modules that produces 666.4 kW of power. The second is a battery bank, consisting of 2420 lithium-ion battery cells, ready to store 837 kWh worth of electricity and supply 500 kV worth of peak power. The third aspect is the diesel generators, which supply power to the island when the solar farm is not producing energy (for example at night), and the battery bank is depleted. Combined, these three power production elements, coupled with a set of smart controllers, supply Robben Island power – all of the time.
