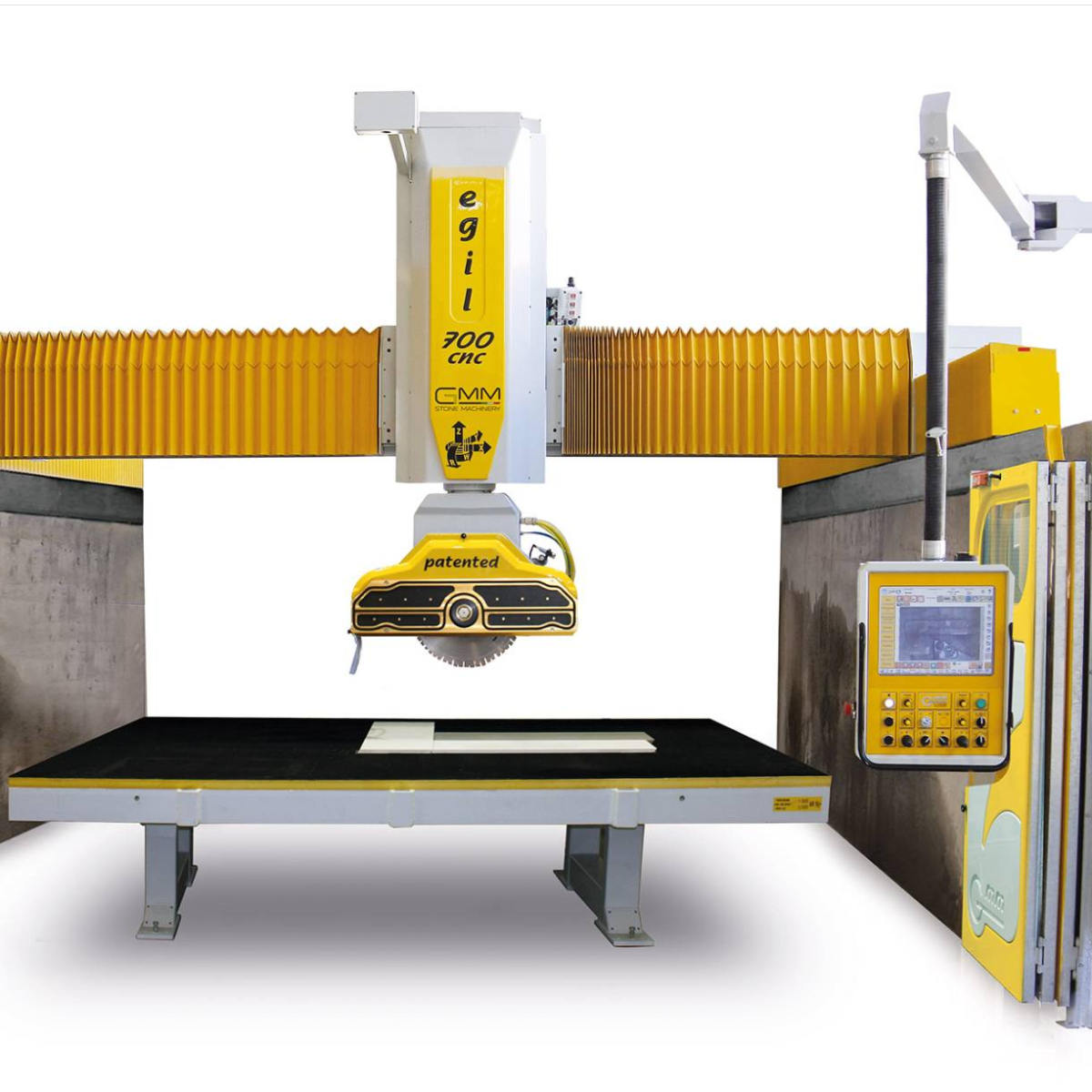

Egil 700 CN2

Egil 700 CN2

Machinery - plant - equipment
Egil 700 CN2
Egil 700 CN2
Egil 700 CN2
Egil 700 CN2

Information

CNC 5-axis sawing machine. The Egil blends the ease of use of a traditional manual machine, with the high output operator free sawing cycles. Simple and intuitive programming enables owners and operators to get the most from the machine - featuring parametric drawings, Cuts From CAD, Contouring, Profiling and Shaping, Curb Programming, Drilling and lettering, and spiral work pieces, the machine can also be equipped (upon request) with a digital camera to provide a jpeg of the slab on screen, automatic movement/unloading of sawn pieces saving time, man power, and raw material by using integrated Vacuum head, auto tool changing with either ISO40 or simple magnetic connection, overlapping automatic table changing, a rodding device to create grooves in the underside of pieces, and even a lathe (gearbox driven or CNC). Features: - Fully interpolated 5 axis movement with rotating head with 370° range, inclination from 0°-90°. - Hot dipped galvanized steel non rotating table with saw surface in either high density plastic or rubber matting (optional) with max blade size of 825 mm (32.5 in) with Z axis (rise and fall movement) 700 mm (27.5 in). - The principle sections of the machine are made from solid cast with ancillary parts made up of hot dipped galvanized steel structures - supplied with folding door solid panel safety barriers. - Fast and precise movements due to brushless motors with absolute encoders, recirculating ball bearing movement, precision gearboxes and interpolated axis from the CNC. - Electro spindle running up to 6000 rpm with centre waterfeed and a 36x2 or ½ gas fitting. Or (on request) ISO40 cone fitting running at up to 8000 rpm for automatic tool change. - Suspended pendant with 15” TFT color touchscreen. Machine is equipped with USB/Ethernet port for easy loading of programs. Stainless steel electrical panel. Processing: - Single cut - Multiple cuts - Inclined cuts / mitre - Orthogonal cuts / polygons - Circumferences / arcs
