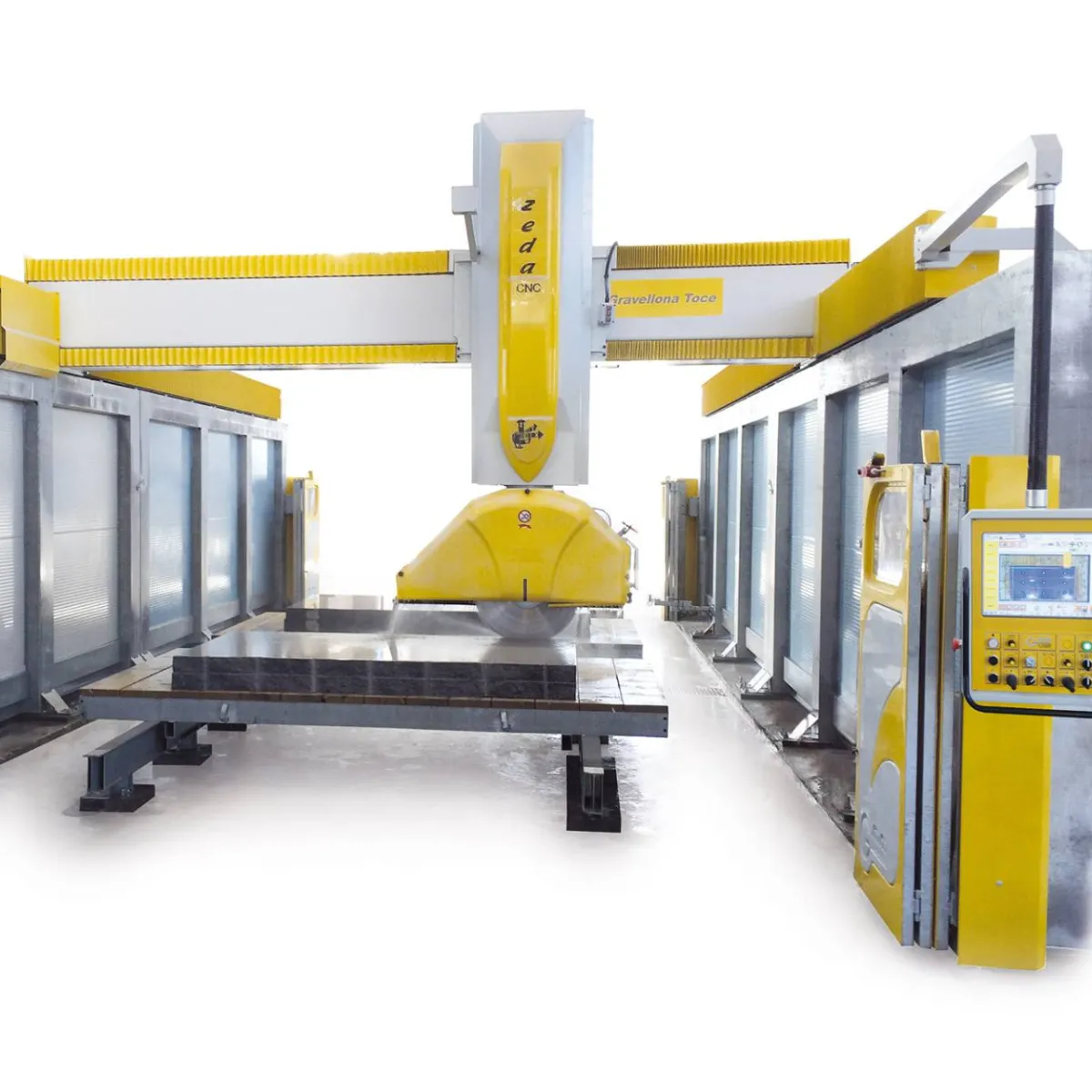

Zeda 2000

CNC 5-axis bridge shaping machine. The Zeda blends the ease of use of a traditional manual machine, with the high output operator free sawing cycles. Simple and intuitive programming enables owners and operators to get the most from the machine - featuring parametric drawings, Cuts From CAD, Contouring, Profiling and Shaping, Drilling and lettering, and spiral work pieces, the machine can also be equipped (upon request) with a digital camera to provide a jpeg of the slab on screen, automatic movement/unloading of sawn pieces saving time, man power, and raw material by using integrated Vacuum head, auto tool changing with either ISO40 or simple magnetic connection, overlapping automatic table changing, a rodding device to create grooves in the underside of pieces, and even a lathe (gearbox driven or CNC). Features: - Fully interpolated 6 axis movement with rotating head with 370° range, inclination from 0-120°. - Hot dipped galvanized non rotating table with variable height saw surface in either wood, high density plastic or rubber matting (optional) with max blade size of 1300 mm (51 in) with inverter drive Z axis (rise and fall movement) 1300 mm (51 in) or 1600 mm (63 in) or 2000 mm (78.7 in). - The principle sections of the machine are made from solid cast with ancillary parts made up of hot dipped galvanized steel structures - supplied with folding door solid panel safety barriers. - Fast and precise movements due to brushless motors with absolute encoders, recirculating ball bearing movement, precision gearboxes and interpolated axis from the CNC. - Electro spindle running up to 6000 rpm with centre waterfeed and a 36x2 or ½ gas fitting. Or (on request) ISO40/50 cone fitting running at up to 8000 rpm for automatic tool change. - Suspended pendant with 15” TFT colour touchscreen. Machine is equipped with USB port for easy loading of programs. Stainless steel electrical panel.
