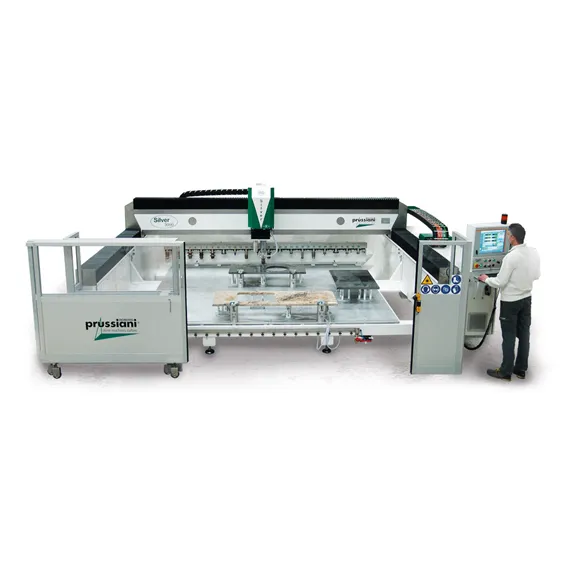

SILVER 2000 - CNC working center
Machinery - plant - equipment
Information
Prussiani CNC WORKING CENTERS are designed and built for processing of marble, granite, engineered quartz, ceramic and natural stones.
Powered by a numerical control interfaced with CAD/CAM systems allow the Customer to produce different workings like contouring, profiling, drilling, milling, polishing, engraving and bas-relief.
Whether for the production of unique pieces or for serial production Prussiani CNC WORKING CENTERS are ideals for kitchen tops and vanity tops production, for funerary art and furnishings.
CNC WORKING CENTERS machines may be customized according to the Customer’s needs about production and space available into his factory.
Also available in the version with Y AXIS stroke of 1,500 mm, 2,500 mm or 3,000 mm.
Advantages:
- MACHINE STABILITY AND PERFECT CUTTING QUALITY (GANTRY system)
- MACHINE EASY TO USE
- EASY AND LOWERED MAINTENANCE
- NO RISK OF OIL STAINS ON THE MARBLE SLABS
- ATTENTION TO PEOPLE SAFETY
- MACHINES PRODUCED IN ITALY
- UP TO SIXTY MONTHS WORRY-FREE
TECHNICAL DATA
X axis stroke mm (in) 3.300(129 ⅞)
Y axis stroke – GANTRY mm (in) 2.000 (78 ¾)l
Z axis stroke mm (in) 250 (9 ⅞)
A axis rotating degrees –
B axis inclination degrees -1,5° / +1,5°
X axis rapid speed m/min (fpm) 60 (197)
Y axis rapid speed m/min (fpm) 60 (197)
Z axis rapid speed m/min (fpm) 15 (49,2)
Tool-holder spindle motor power HP (kW) S6 19 (14)
Tool-holder spindle motor torque Nm 66
Tool-holder spindle rotation speed rpm 0 – 10.000
Axes motors for axis X-Y-Z with absolute encoder – BRUSHLESS
Spindle tool holder – ISO 40
Tool stations – 20
Max total absorbed power kW 18
Approximate total weight kg (lb) 4.500 (9920)
Length mm (in) 5.300 (208 ⅝)
Width mm (in) 3.500 (137 ¾)
Height mm (in) 2.100 (82 ¾)
- automatic centralized greased lubrication. In case of anomalies the machine stops;
- watertight IP 55 electric cabinet with safety thermostat;
- sound power level: 84 ÷ 90 dB(A).
