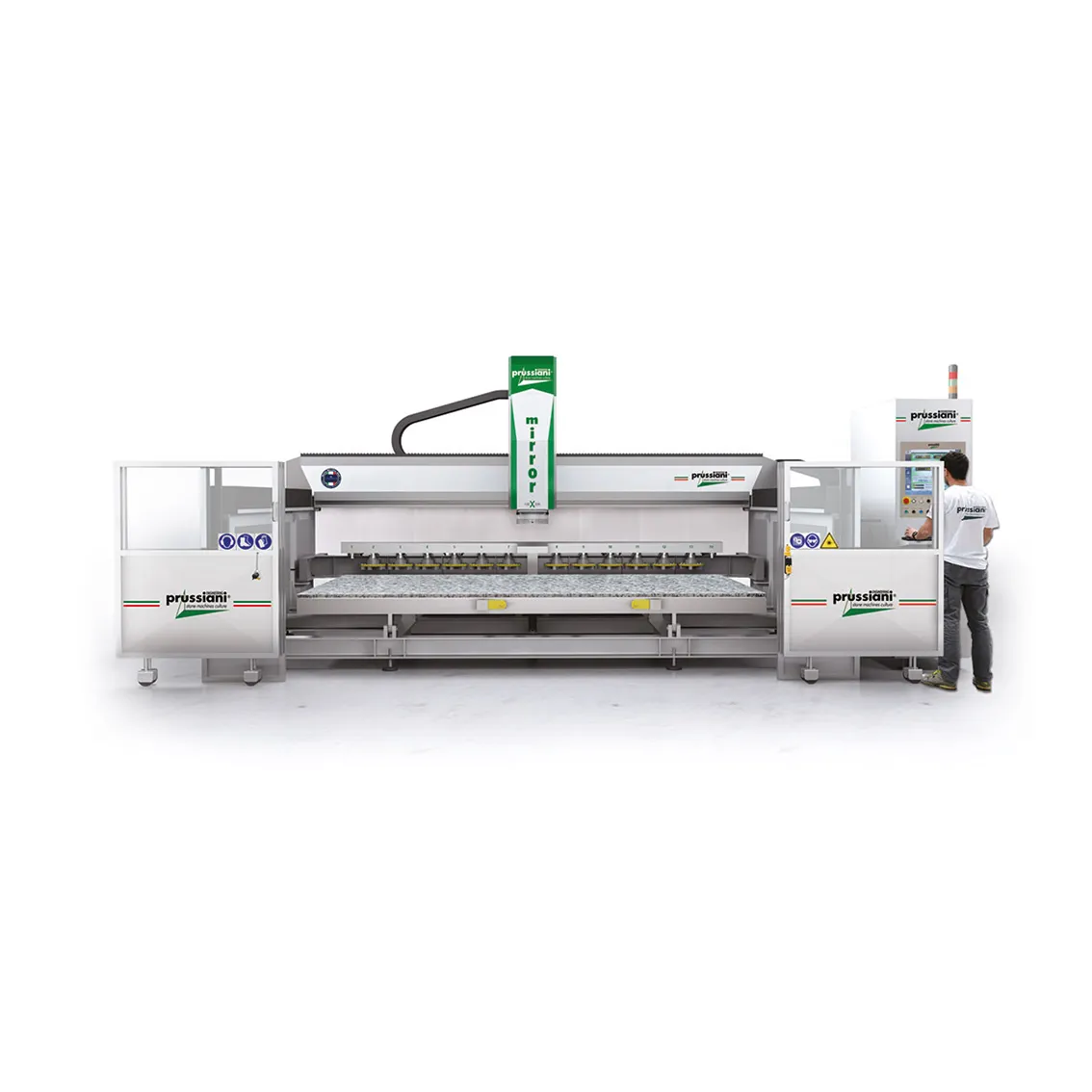

MIRROR - CNC slabs polishing machine

Slabs polishing machines MIRROR, with 3 interpolated axis, are designed and built for the surface finishing of marble and granite slabs, engineered quartz and natural stones. Perfect result thanks to our special pneumatic balancing of the head. Powered by a numerical control interfaced with CAD/CAM systems they have automatic tools change that allows calibration, polishing, honing, brushing and engraving of the slabs surface. The machine are equipped with a 14 positions tools store, on the back of the working table. Slabs polishing machines MIRROR may be customized according to the Customer’s needs about production and space available into his factory. Advantages: - Machine stability bridge moved by two motors, one on the right and one on the left(GANTRY system) - Machine easy to use intuitive CAD/CAM software - Easy and lowered maintenance planning controlled and guided by CNC - No risk of oil stains on the marble slabs lubrication with EP1 density grease - Attention to people safety machines compliant with the most recent safety standards. Also available in the version with double table. TECHNICAL DATA X axis stroke mm (in) 3.600 (141 ¾) Y axis stroke – GANTRY mm (in) 2.200 (86 ⅝) Z axis stroke mm (in) 350 (13 ¾) X axis rapid speed m/min (fpm) 33 (108,3) Y axis rapid speed m/min (fpm) 33 (108,3) Z axis rapid speed m/min (fpm) 20 (65,6) Tool-holder electrospindle motor power HP (kW) S6 22,5 (16,5) Tool-holder electrospindle motor torque Nm 100 Tool-holder electrospindle rotation speed rpm 0-10.000 Electrospindle tool holder – ISO 40 Max tool diameter mm / in 250 (9 ⅞) Axes motors for axis X-Y-Z with absolute encoder – BRUSHLESS Tool stations – 14 Max total absorbed power kW 22 automatic centralized greased lubrication. In case of anomalies the machine stops; watertight IP 55 electric cabinet with safety thermostat; sound power level: 84 ÷ 90 dB(A);
