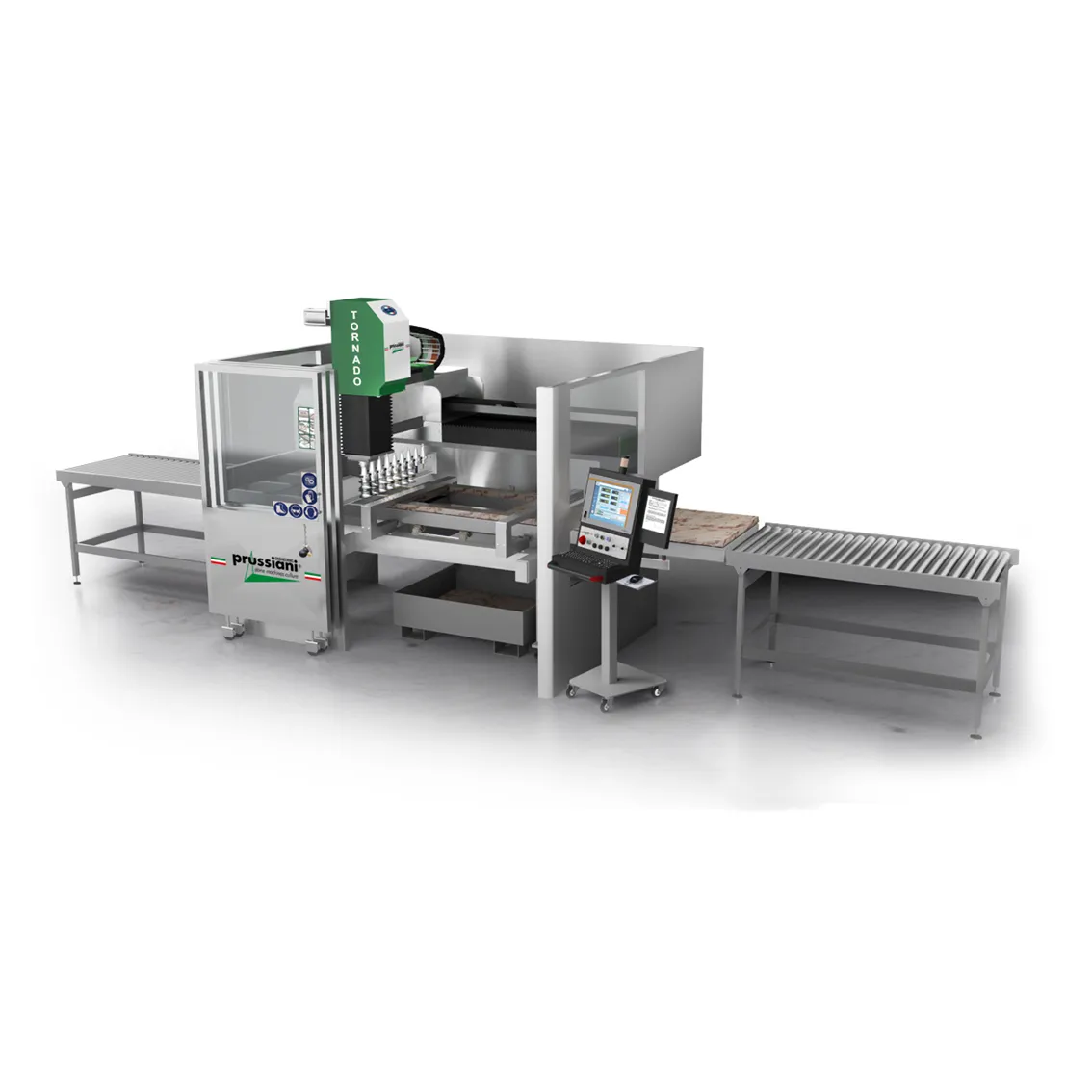

TORNADO - CNC sink hole machine
Machinery - plant - equipment
Information
Prussiani TORNADO, 3 axis CNC sink cutting and polishing machine with auto-tool change.
A revolutionary high production full CNC controlled router designed for optimum cutting and polishing of Kitchen sinks and vanity bowls.
All the functionality and quality of full fledge CNC routers, but without the hefty price tag, and the large floor space of full size machines.
ADVANTAGES:
- Quick workpiece positioning thanks to the Quickzero™ reference system
- Easy to program and operate one day training and ready to work
- Automatic Locking System (ALS) of workpiece in place no suction cups needed
- Machine easy to use intuitive CAD/CAM software
- Perfect polish due to the always true surface reference created by “ALS”
- Hard center-line arrow to quickly locate the cut out location
- Easy and lowered maintenance planning controlled and guided by CNC
- No risk of oil stains on the marble slabs lubrication with EP1 density grease
TECHNICAL DATA:
X axis stroke mm (in) 1.200 (47 ¼)
Y axis stroke mm (in) 800 (31 ½)
Z axis stroke mm (in) 250 (9 ⅞)
X axis rapid speed m/min (fpm) 35 (115)
Y axis rapid speed m/min (fpm) 35 (115)
Z axis rapid speed m/min (fpm) 15 (49,2)
Tool-holder spindle motor power HP (kW) S6 19 (14)
Tool-holder spindle motor torque Nm 66
Tool-holder spindle rotation speed rpm 0-10.000
Axes motors for axis X-Y-Z with absolute encoder – BRUSHLESS
Spindle tool holder – ISO 40
Tool stations – 9
Max total absorbed power kW 16
Approximate total weight kg (lb) 3.100 (6834)
Length mm (in) 3.810 (150)
Width mm (in) 2.200 (86 ⅝)
Height mm (in) 2.480 (97 ⅝)
COUNTERTOPS:
Tickness mm (in) 10 ÷ 40 ( ⅜ ÷ 1 ⅝ )
Width mm (in) 400 ÷ 1020 ( 15 ¾ ÷ 40 ⅛ )
Sink cutout size mm (in) 950 x 630 (37 ⅜ ÷ 24 ¾ )
- Automatic centralized greased lubrication. In case of anomalies the machine stops;
- Watertight IP 55 electric cabinet with safety thermostat;
- Sound power level: 80 ÷ 90 dB(A).
