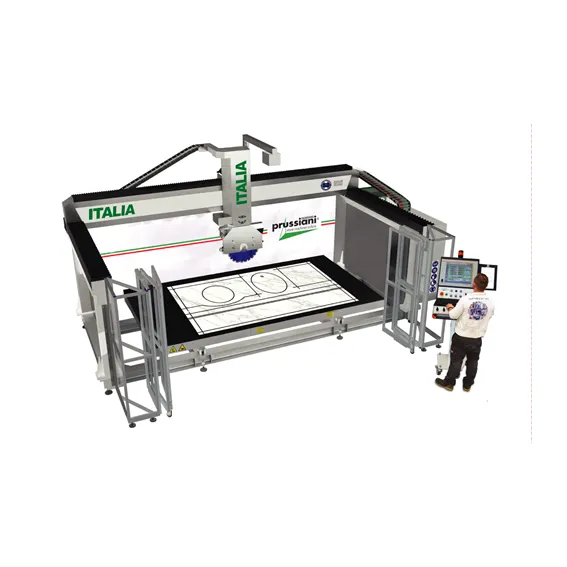

ITALIA - CNC bridge saw for porcelain and stones

Machinery - plant - equipment

Information

ITALIA, the numerically controlled five-axis interpolated BRIDGE SAW ideal for cutting porcelain slabs, marble, granite and stone in general. Super compact in fottprint but large in working dimensions, it does not require foundations or concrete walls thank to the monobloc structure in galvanized steel. It can also be used for the processing of solid pieces such as cornices, arches and profiles bothlinear and curved. ADVANTAGES: - Perfect Cutting - Easy to use - Resistance - Maintenance - No oil stains risk - Attention safety - User friendly - Customer care - Compact footprint - Made in Italy TECHNICAL DATA: X axis stroke mm 3.600 Y axis stroke – GANTRY mm 2.100 Z axis stroke mm 350 A axis rotation gradi – 185° + 185 C axis tilting gradi 0° ÷ 90° X axis rapid speed m/min 45 Y axis rapid speed m/min 45 Z axis rapid speed m/min 10 Main disk-holder electrospindle power HP S9 20 Main disk-holder electrospindle torque Nm 72 Main disk-holder electrospindle rotation speed rpm 0 ÷ 6.000 Electrospindle tool holder – 1/2″ gas Max disk diameter – 1/2″ gas Min disk diameter mm 625 Max distance table spindle nose mm 300 Max cutting thickness with disk mm 215 Axes servomotors for axis X-Y-Z-A-C with absolutes encoder – BRUSHLESS Max total absorbed power kW 18 Approximate total weight kg 5.000 Length mm 5.550 Width mm 3.350 Height mm 2.700 Height with camera mm 2.800 MONOBLOCK STRUCTURE - Automatic centralized greased lubrication. In case of anomalies the machine stops - Watertight IP 55 electric cabinet with safety thermostat - Sound power level: 80 ÷ 90 dB(A)

Machinery - plant - equipment

MachineryPlant and systemsEquipment

PRUSSIANI ENGINEERING S.P.AOur meetings with numerous stone workers, who help to adorn our world with their works are the inspiration behind the design and development of increasingly innovative machines, that allow them to create their products, eliminating fatigue, improving safety and achieving perfection. This is the story behind the machines that have made history in the stone, marble and granite processing technology world. Machines that have and continue to contribute to the preservation of history and innovation of the future with sculptures, furniture, inlays and buildings. We listen to his needs, sharing expectations, problems and goals and we search for the most suitable technical solutions to meet the specific space and processing requirements, so as to offer quality, services, innovation and safety. In 1991 the dream shared by Mario Giorgio Prussiani and his wife Mariella came true and they created Prussiani Engineering: a company established with the goal of designing and engineering top quality CNC machines for the processing of marble, granite and stone. Prussiani Engineering has progressed over the years keeping pace with market requirements, confirming its presence at a worldwide level. It has expanded its line of products promoting ongoing research to achieve technological innovation and improvement and it is able to offer its Customers increasingly efficient and high technology machines carrying a 3 year warranty. The range includes numerous bridge saw models with the patented “CUT&MOVE” system, 5-axes interpolated milling machines for the processing of solid blocks, working centers, waterjet, Cut&Jet, polishing, sink hole and machines. Sturdy, precise and long-lasting machines, suitable for the needs of large and small-scale production. The great project of an Italian company capable of combining imagination and beauty when designing its machines and the endless expressive options that these machines can guarantee to its Customers, is a reality and has a name.
