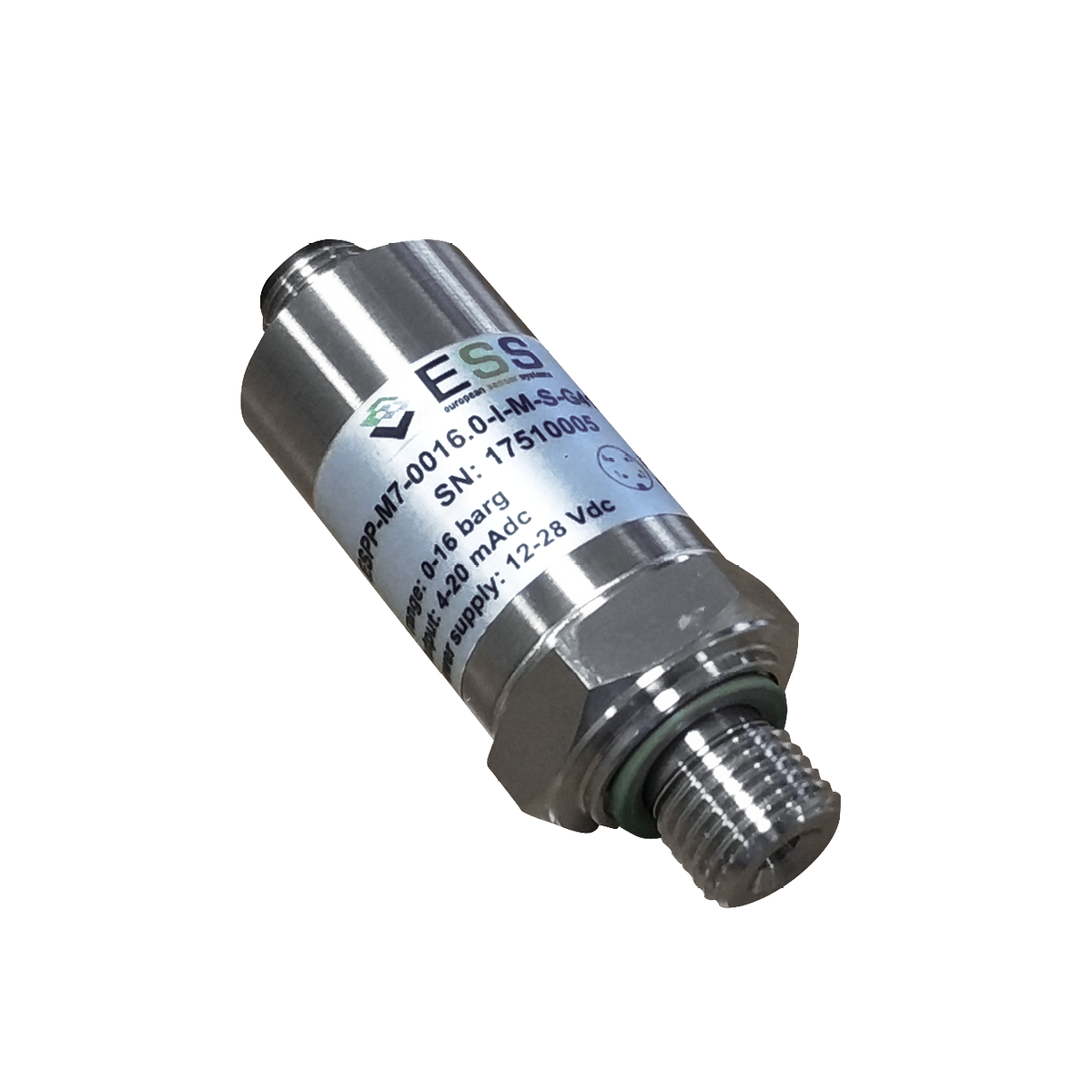

ESPP-MIT1 - Micro-Fused Strain Gauge Pressure Transmitters
Enabling IOT
Information
ES Systems has developed a series of pressure sensor transmitters featuring very good accuracy at low cost. Each module is based on all welded hermetically sealed structure in a single stainless-steel piece. The ESPP-MIT1 is a medium isolated pressure sensor suitable for gas or fluid pressure measurements in harsh environments.
The output is fully calibrated and temperature compensated based on the internal temperature sensor and the factory calibration coefficients which are stored in the embedded memory. Thus, the transducer is ready to be installed directly to the end user system without further processing.
ESPP-MIT1 comes with a variety of electrical interfaces output signal types and process interfaces. It is one of the most cost-effective solutions especially when high volumes are required.
Specifications:
Pressure Type: Gauge
Pressure Range: Up to 1000bar
Power Supply: +8V … +28V
Total Error: < ±1.0%FS
Operating Temperature: -40oC …+125oC
Compensation Temperature: -10oC …+80oC
Output: Calibrated Pressure
Output Interface: 4-20mA, 0.5V-4.5V, 1-5V, 0-5V
Overpressure Tolerance: Up to 5x
Media Compatibility: Gases, Liquids
Material: Stainless Steel 17-4PH
Connection Type: M12, ISO4400, Cable, Packard
Process Interface: G1/2'', G1/4'', 1/2''NPT, 1/4?NPT, …
Dimensions : Height: 66.5mm | diameter Ø23.5mm
