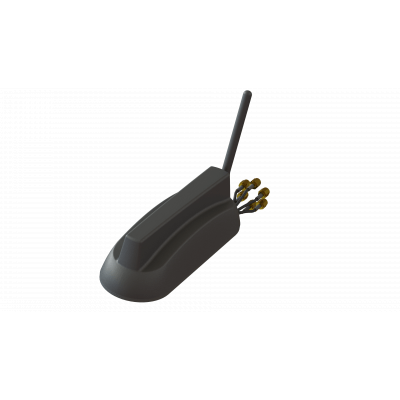

The Gar low-profile multiport/multiband antenna provides an excellent solution for public safety, transportation, and aftermarket fleet applications. The VFP69383B22JN is a 5-port antenna that comes configured for 2-port MIMO operation over the 3G/4G/5G/ISM/CBRS bands, and 2-port MIMO operation over the low/high frequency Wi-Fi bands. The additional 5th port provides an active antenna for enabling GNSS global navigation services (which includes GPS, GLONASS, Galileo, Beidou, and other regional systems). The Gar antenna is also available in multiple variants with different subsets of frequency support: VFD69383x2NNN - 2-port (2 Cellular) VFD69383x1NJN - 2-Port (1 Cellular, 1 GNSS) VFT69383x11JN - 3-Port (1 Cellular, 1 Wi-Fi, 1 GNSS) VFT69383x2NJN - 3-Port (2 Cellular, 1 GNSS) VFQ69383x21JN - 4-Port (2 Cellular, 1 Wi-Fi, 1 GNSS) Key Features include: 5G Ready Configured for FirstNet MIMO operation Single-hole mounting reduces vehicle damage and installation costs Attractive IP67 low profile aerodynamic housing Multiband/MIMO operation with GNSS navigation Gar antennas not only increase signal reliability and data throughput but enable the possibility for vehicles to function as communication hubs. They are 5G ready, aerodynamic, and ruggedly reliable, and are the only vehicular antennas in the industry to come with a 5-year product warranty.
