Multiband LTE MIMO & 802.11AC Antennas with High Rejection GPS/GLONASS
Products
Information

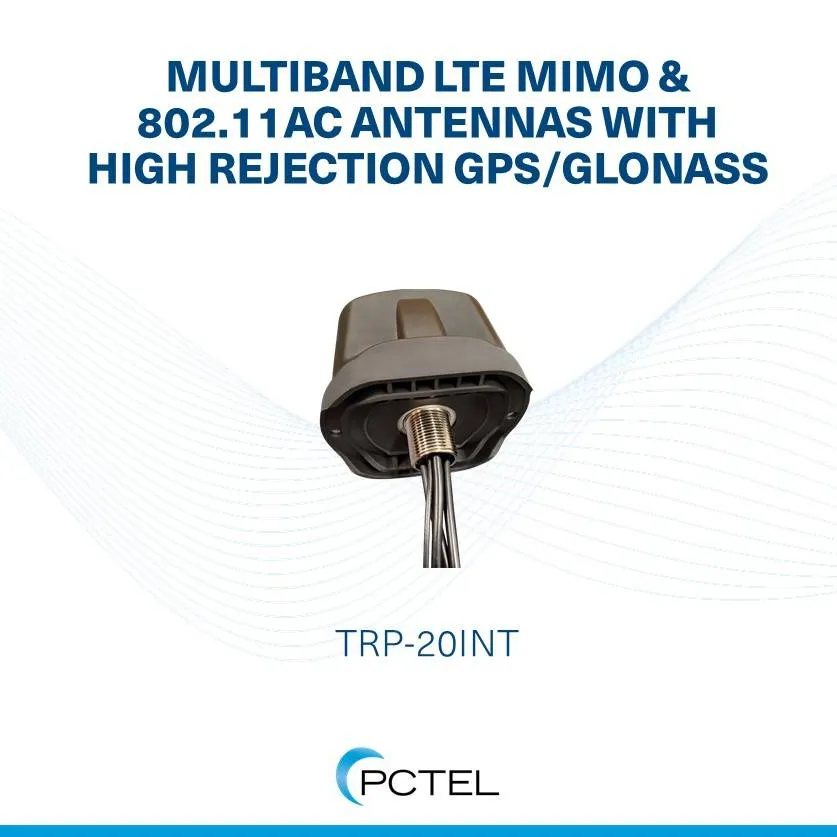

The Trooper™ TRP-20INT antenna platform supports the high speed requirements of complex RF communication systems used for Intelligent Transportation Systems (ITS), and IIoT applications. Their purpose-designed footprint allows seamless installation on new leading 2020 public safety sports utility vehicles with narrow ridged rooftops. These antennas feature two 5G elements compatible with the world’s leading cellular routers supporting 600 MHz to 6 GHz frequencies. In addition, PCTEL’s proprietary high-rejection multi GNSS technology is included for high precision tracking and asset management.
Features:
No field tune, multi-band coverage: dual LTE, optional Wi-Fi, and GPS L1/GLONASS frequencies.
• Designed for raised rooftop rib installation - optimizes RF performance by eliminating the shadow interference from the rooftop ribs often experienced with recessed location installations.
• Patent-pending flexible gasket geometry – adds installation flexibility along the center rib of the vehicle’s rooftop, with improved clearance for mounting hardware.
• Patent-pending, watershed conformable gasket construction – reduces freeze-thaw potential and optimizes the seal between the radome and baseplate for reliable ingress protection*.
