MULTIGAS GAS IN-SITU LASER ANALYZER - GASEYE CROSS DUCT
Products
Information

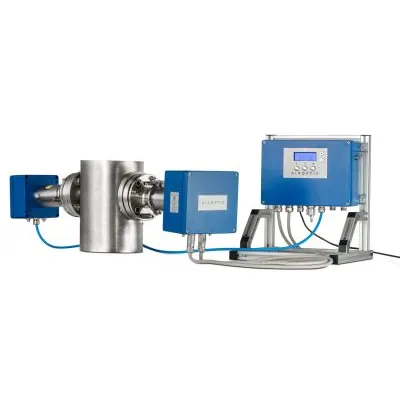

The GasEye Cross Duct MG (Multi Gauge) analyzer consists of a pair of cross-duct sensors – a transmitter and a receiver unit as well as a central unit. The transmitter unit emits laser radiation directly through the process containing the constituents of interest. The receiver unit collects the radiation on the other side of the process duct. The central unit, located close to the transmitter unit (< 2 meters) contains analyzer electronics, MMI and I/O. The receiver unit is connected to the central unit by means of a hybrid loop cable (included) and the transmitter unit is connected to the central unit by one or two electrical cables (included).
FEATURES
Process temperature: 0 – 1350°C
Real time sensing: response time < 0.2 second
High selectivity: automatic compensation for interference effect from other constituents
High sensitivity: detection limits down to ppb range
In-situ monitoring: direct in the process, no sample preparation
Maintenance free: equipped with a self-calibrating feature, no field calibration necessary
Robustness: IP66 enclosure, suitable for outdoor and indoor installations and harsh environments
Insensitive to dust and smoke in the measured process: up to 50 g/m3
ATEX and IECEX version available CSA certificate expected Q/2022
