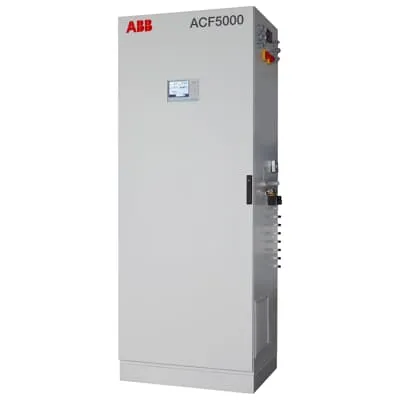

ACF5000, hot-wet FTIR multicomponent analyzer system

- Continuous, quantitative and selective measurement of HCl, HF, H2O, CO, CO2, SO2, NO, NO2, CH4, NH3, N2O, H2CO, O2 and VOC (other gases on request) • Maximum 15 measuring components (standard), simple upgrade on request • Proven hot wet extractive measurement technique • High stability, accuracy and reliability through proven FTIR technology • Fully integrated VOC and O2 analyzers (optional) • Unique air-driven injector pump, no moving parts, low condensate to handle • QAL3 automatic span drift check without test gas • Low ownership, maintenance and installation cost through multi-component measurement technology with only one sampling system • Complete pre-engineered system, modest space requirement, compact and modular system design • Clear-text status messages and user-friendly operator interface on a large back-lit display • Measured value and status signal transmission to DCS and emission evaluators via Ethernet or Modbus TCP (analog and digital outputs, Modbus and PROFIBUS optional) • Local control for service purposes via Ethernet and remote maintenance via UMTS • Integration and display of signals from other detectors (e.g. dust, mercury, flow, pressure, temperature)
