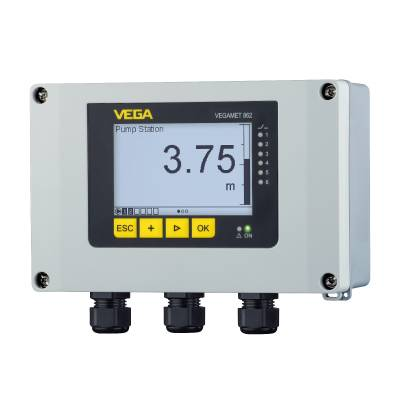

VEGAMET 862 - Controller & Display
Water Level and Flow
Information
Application area
2 x 4 ... 20 mA/HART sensor inputs, 4 x digital inputs, 3 x 4 ... 20 mA current outputs, 6 x operating relays, 1 x fail safe relay (instead of operating relay), Ex approval, on-site display, 4-button and smartphone operation
The VEGAMET 862 controller feeds the connected 4 ... 20 mA or HART sensors, processes the measured values and displays them. A large display for data visualisation is integrated in the housing designed for rough field conditions.
It enables a simple conversion of pump controls, flow measurements on open channels and weirs, totalizers, data loggers, difference, sum and average value calculations. With VEGAMET 862, limit values can be monitored reliably and relays can be switched, e.g. for an overfill protection according to WHG.
Your benefit
- Complex programming of control tasks is no longer necessary
- Simple and safe setup and diagnosis of measuring points via smartphone
- Easy-to-read display from a distance, even in sunlight and darkness
