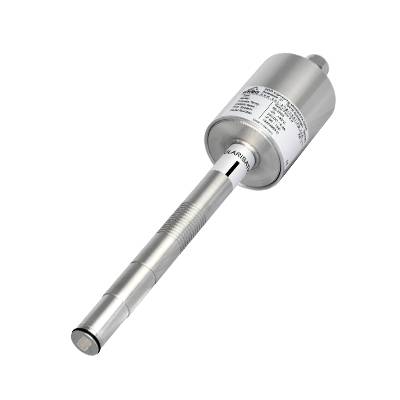

SolidFlow 2.0 Mass Flow Measurement Sensor
Stack Emissions Monitoring
Information
Continuous mass flow measurement of all types of dust, powder and granules in free fall and pneumatic conveying
Microwave sensor for on-line mass flow measurement of solids up to 20 t/h. Used in pneumatic lean phase conveying or vertical freefall after mechanical feeders.
• easy installation via weld-on socket
• for almost all types of dusts, powders, granules
• uses field-proven technology with active roping compensation
• suitable for nearly all pipe diameters
Sorbent injection Application
Dry sorbent injection into the flue gas on a range of industrial sites is a proven method for acid gas emissions control and compliance with evolving environmental control requirements. In addition, the monitoring of gas abatement processes enables Plant Operators to optimise their injection process.
By directly measuring the mass flow of sorbent in real-time within the pneumatically conveyed feed line with the SolidFlow 2.0, the control of sorbent feed can be fine-tuned. Optimising the sorbent injection process reduces the risk of overdosing and keeps costs under control.
