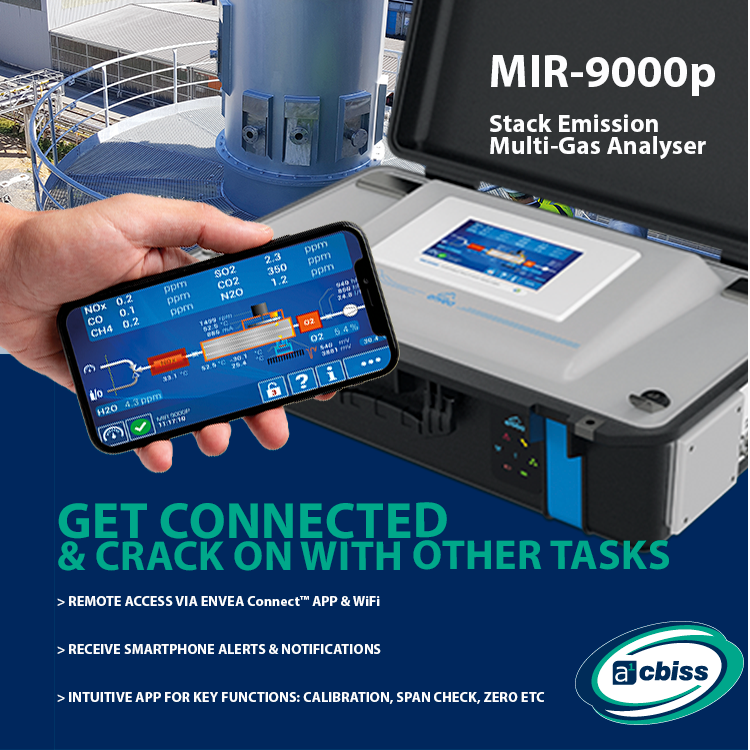

MIR9000p Portable Stack Emissions Monitor
Stack Emissions Monitoring
Information
The new MIR-9000p is a portable multi-gas analyser for carrying out periodic stack emission monitoring designed to be easy to transport, weatherproof and saves stack tester technicians time on site.
SIMULTANEOUS PARAMETERS
It measures simultaneously 8 gases – NOx, SO2, CO, CO2, CH4, N2O, O2 and residual H2O – and uses the non-dispersive infrared method (NDIR-GFC) with gas filter correlation. O2 is measured by a built-in SRM paramagnetic sensor.
COMPLIANCE
The MIR 9000P fulfils the requirements of the EN 15267-4 (pending)
INCREASED MOBILITY & PRODUCTIVITY
Lightweight (15 kg/33 lbs), compact and extra resistant transport case
641mm (L) x 393 (H) x 209 (W)
Standby mode guarantees the instrument is operational at any time
ROBUST DESIGN
Built-in vibration absorber ensures measurement cell protection and stability
Extended operating temperature ranges
High protection (IP44) against water splashing from any direction
STAY CONNECTED & GET ON WITH OTHER TASKS
Remote access to full operation thanks to ENVEA Connect™ App and proprietary WiFi
Smartphone alerts and notifications
ONE CLICK OPERATIONS
Integrated user guidance and shortcuts to key functions: calibrations, span check, zero, etc.
Secured user management
QUICK INSTALLATION
Warm-up time: 30 min maximum
Robust gas connectors
Self-adaptive measuring scales
Compatible with most sampling systems on the market
PREPARE REPORT ELEMENTS WHILE ON SITE
Direct access to real-time and stored data ; time frame selection to generate graphs
All data can be saved on USB memory stick
