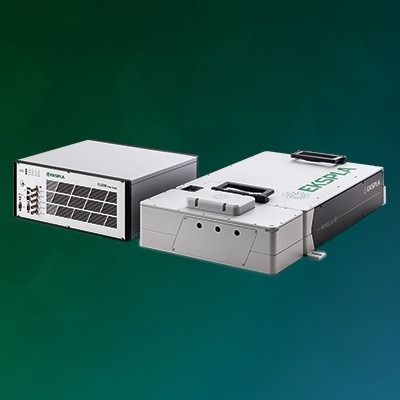

Designed from the get-go for maximum reliability, seamless integration and non-stop 24/7/365 zero maintenance operation with innovative ”dry” cooling. The FemtoLux 30 femtosecond laser has a tunable pulse duration from <350 fs to 1 ps and can operate in a broad AOM controlled range of pulse repetition rates from a single shot to 4 MHz. The maximum pulse energy is more than 100 μJ operating with single pulses and can reach more than 450 µJ in burst mode, ensuring higher ablation rates and processing throughput for different materials. The FemtoLux 30 beam parameters will meet the requirements of the most demanding materials and micromachining applications. Innovative laser control electronics ensure simple control of the FemtoLux 30 laser by external controllers that could run on different platforms, be it Windows, Linux or others using REST API commands. This makes easy integration and reduces the time and human resources required to integrate this laser into any laser micromachining equipment. Laser can be optimized to deliver pulse energies for practically all micromachining tasks – high 1 mJ energy at 10 kHz, for high speed micromachining - MHz repetition rates and µJ energy levels. By employing optional module, UV and green outputs can be achieved additionally to process different kind of materials. The whole system (laser head + power supply) features the smallest footprint in the market. Application fields /Microelectronics manufacturing /Through glass vias (TGVs) manufacturing in glass /Thin glass cutting /Heat-sensitive polymer cutting /Scribing of thick glasses /Black/color marking of medical tools
EKSPLAInnovative manufacturer of solid-state and fiber lasers, from customized systems to small and medium OEM series. In-house R&D team and more than 30 years of experience ensure professional laser design, customization and manufacturing of reliable and state of the art products. Introducing FemtoLux 30 – industrial femtosecond laser tailored for micromachining applications. Featuring military-grade dry cooling system (with more than 90 000 hours of MTBF) FemtoLux 30 sets new reliability standards among industrial femtosecond lasers by delivering hassle free 24/7/365 operation. FemtoLux 30 offers the most flexible pulse management for the market –different GHz burst modes with the same laser source – long GHz burst mode, short GHz burst mode, MHz and GHz burst mode; PoD – pulse on demand – enabling laser to fire a pulse only when required with 20 ns (peak to peak) jitter, enabling precise control over the laser’s output and resulting in higher efficiency, accuracy and quality. Laser delivers 30 W output power at 1030 nm featuring tunable pulse duration from <350 fs to 1 ps and can operate in a broad AOM controlled range of pulse repetition rates from a single shot to 4 MHz. Highly stable and reliable EKSPLA lasers combined with our own subsidiaries in the US, UK and China as well as more than 20 approved representative offices with properly trained laser engineers worldwide, ensure short response time and fast laser service and maintenance which contributes to shorter downtimes and lower life-time ownership costs.
