Semiconductor Lasers for metal nano ink sintering

Our mission is to benefit society through the development of technologies that capture, measure, and generate various types of light.

That's why we re-invest at least 9% of our yearly revenue into research and development - to maintain cutting-edge quality across 90 types of image sensors, light sources, components, and systems with capabilities that span the spectrum from x-ray to infrared.

Hamamatsu Photonics is dedicated to improve life through photonic technologies. Based on this corporate philosophy, we continuously develop new products for scientific, industrial and commercial applications.

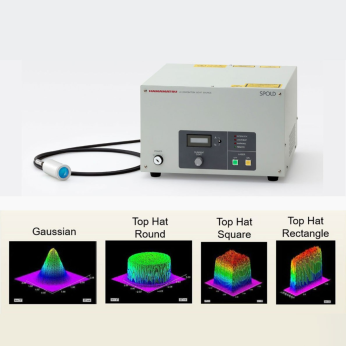

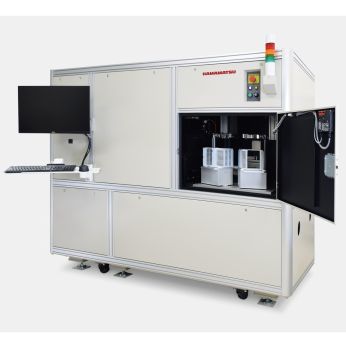

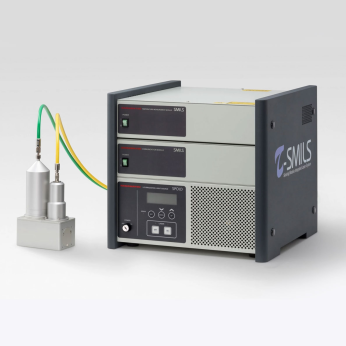

Mainly known for outstanding optical sensing technologies, Hamamatsu Photonics also offers two laser-processing systems with T-SMILS® and SPOLD® for printed electronic applications.

Using an Infrared laser, silver (Ag) or copper (Cu) nanoparticles are melting extremely quickly in nano inks, enabling high-speed and high-temperature sintering while reducing the thermal effect on the substrate, as it does not absorb the laser radiation.

An integrated real-time temperature measurement directly in the focal area of the work piece enables permanent monitoring of the emitting process heat, precise quality control and the lowest possible resistance of the printed conductive tracks.

For more information, please click here: https://www.hamamatsu.com/eu/en/product/lasers/applied-products-of-semiconductor-lasers/metal-nano-ink/index.html
