R8 - High-channel Count Data Acquisition System
Products
Information

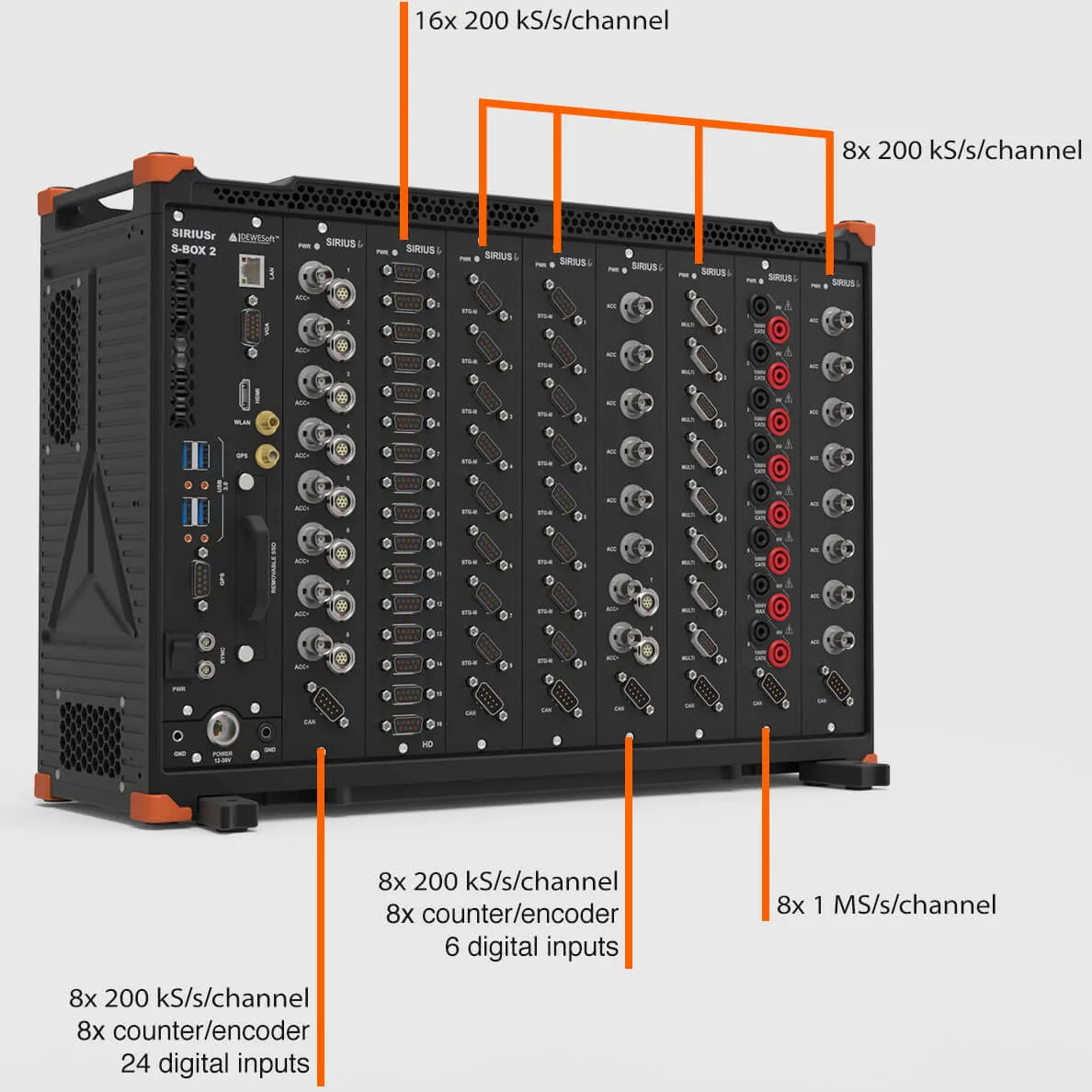

High channel count data acquisition system with built-in data logger and powerful data processing computer, touch screen display (R8D) and internal batteries (R8B, R8DB) for maximum portability. R8 can be configured with up to: 128 analog channels, 192 digital channels, 48 counter/encoder channels and 8 CAN bus input channels. If that is not enough channels, multiple R8 DAQ systems can be connected and synchronized together to form larger DAQ systems with thousands of channels using Dewesoft NET technology. At the heart of every R8 DAQ system is a powerful SBOX computer powered by Intel Core i7 CPU. Together with 4 GB of memory, fast internal SSD storage, and a removable data SSD hard drive it provides enough storage and power for processing data from thousands of channels. The R8 SBOX computer is also equipped with all the modern interfaces for connectivity and expansion.
