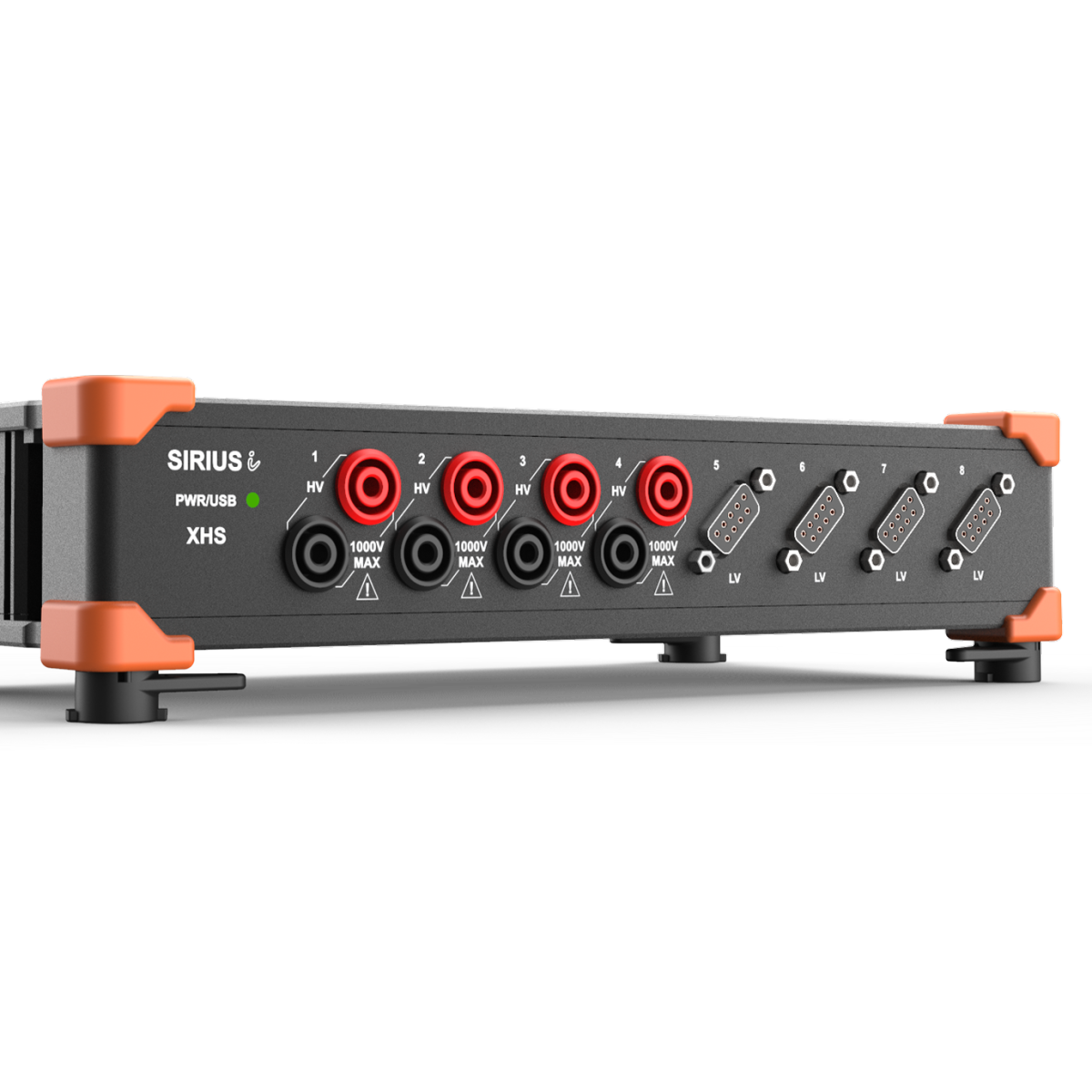

Power Analyzer with up to 15 MS/s sampling rate per channel: SIRIUSi XHS

Introducing the new SIRIUSi XHS power analyzer with up to 15 MS/s sampling rate per channel, and a newly developed hybrid ADC technology which offers both, high dynamic and high bandwidth at the same time. The SIRIUS XHS is the first DAQ device ever, that comes standard with Hybrid ADC technology. Software-selectable, with modern interfaces and protocols which allow open and flexible connectivity. Up to 15 MS/s sampling rate with 5 MHz bandwidth captures even the shortest transients. With the standard SIRIUS sized chassis, you can easily carry the SIRIUS XHS in your backpack along with your laptop for field measurements. SIRIUS XHS HV: Highly isolated CATII 1000 V input. This amplifier can measure in a range of 20 V to 2000 V peak directly, with 5 MHz bandwidth and an accuracy of 0.03 %. Making it perfect for the direct connection of high voltage signals. SIRIUS XHS LV: Highly isolated voltage input. This amplifier can measure in a range of 0.05 V to 100 V, with a 5 MHz bandwidth, an accuracy of 0.03%, and excitation for selected sensors. It is perfect for a direct connection of low voltage signals and current transducers. The SIRIUS XHS device is the perfect all-in-one next-gen power analyser and power quality analyser device with the highest measurement precision. The Dewesoft X data acquisition software will not only store raw data from all the connected channels, but also automatically calculate power parameters such as P, Q, S, D, Cos φ, power factor, and P, Q, cos φ for each harmonic as well as other relevant power parameters using the integrated power module in the software.
