Information

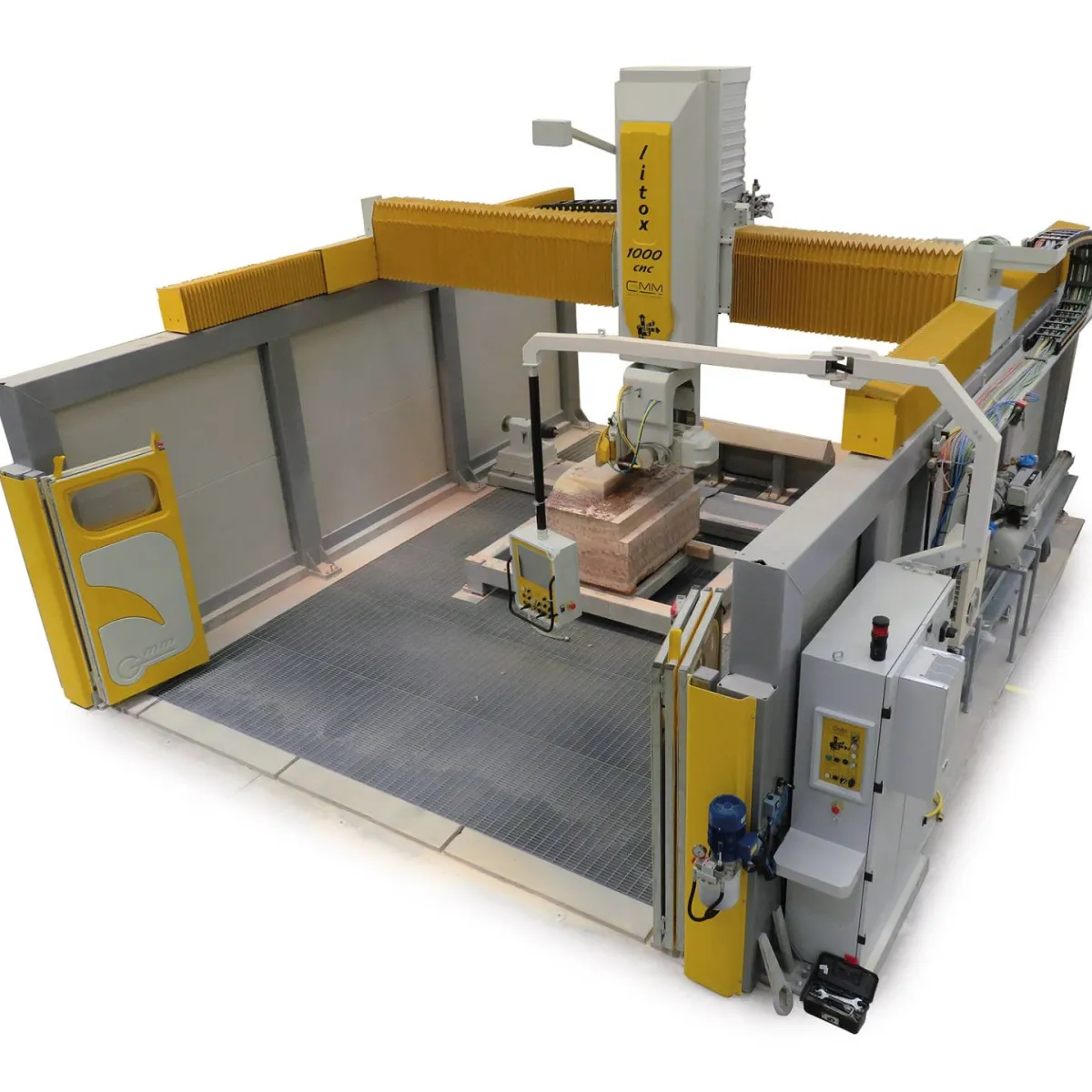

CNC 5-axis bridge shaping machine. The Litox blends the ease of use of a traditional manual machine, with the high output operator free sawing cycles. Simple and intuitive programming enables owners and operators to get the most from the machine - featuring parametric drawings, Cuts From CAD, Contouring, Curb programming, Profiling and Shaping, Drilling and lettering, and spiral work pieces, the machine can also be equipped (upon request) with a digital camera to provide a jpeg of the slab on screen, automatic movement/unloading of sawn pieces saving time, man power, and raw material by using integrated Vacuum head, auto tool changing with either ISO40 or simple magnetic connection, overlapping automatic table changing, a rodding device to create grooves in the underside of pieces, and even a lathe (hydraulic driven or CNC). Features: - Fully interpolated 6 axis movement with rotating head with 370° range, inclination from 0°-90°. - Hot dipped galvanized non rotating table with variable height saw surface high density plastic or rubber matting (optional) with max blade size of 1100 mm (43.3 in) with inverter drive. Z axis (rise and fall movement) - 1000 mm (39.4 in). - The principle sections of the machine are made from solid cast iron with ausillary parts made up of hot dipped galvanized steel structures - supplied with folding door solid panel safety barriers. - Fast and precise movements due to brushless motors with absolute encoders, recirculating ball bearing movement, precision gearboxes and interpolated axis from the CNC. - Electro spindle running up to 6000 rpm with centre waterfeed and a 36x2 or ½ gas fitting. Or (on request) ISO40/iso50 cone fitting running at upto 8000 rpm for automatic tool change. - Suspended pendant with 15” TFT color touchscreen. Machine is equipped with USB/Ethernet port for easy loading of programs. Stainless steel electrical panel. - Software which controls 6 axis (X-Y-Z-W-R-lathe) and TOOL POINT control.
Architecture and design using natural stone
Design using marbleFurnishing elements
Architecture and design agglomerates
Interior finishes
Machinery - plant - equipment
MachineryPlant and systems
GMM S.P.A.GMM - Short history of great success GMM Spa  was established in 1993 in Gravellona Toce - Italy.The company designs, manufactures and distributes machines for cutting, working marbles, granites and travertine. Its expansion on foreign markets started in 1997, from Europe, spreading worldwide in the following years. GMM International was incorporated in the same year in Hong Kong. After a strong growth experienced in the period 1997-2004, in 2001 Mectoce Srl was established, a company dedicated to manufacturing and pre-assembly activities on behalf of GMM SpA. GMM USA Inc., Charlotte NC, was established in 2004 to better follow market and after sales on North America area. GMM Holding on 2013 extended its product range from cutting to polishing, by acquiring the company CEMAR, a highly experienced manufacturer of calibrating and polishing machines for slabs and tiles, of polishing edges machines and automatic lines for processing slabs and strips. On 2018 GMM Group acquired TECHNI WATERJET, one of the most leading producers of high pressure water jet in the world, on specific specialized in the fields of stone, glass, steel and others. GMM GROUP currently designs and manufactures A WIDE AND COMPLETE RANGE OF MACHINERY FOR PROCESSING MARBLE, GRANITE, AGGLOMERATE, PORCELAIN CERAMIC, CONCRETE to manufacture tiles, kitchen tops, vanity tops, architectural components, furnishing and monuments. The GMM PHILOSOPHY  of construction is based on the use of strong structures even in cast iron, on the use of high quality components, under the constant and  careful control of each production processes. Extremely important and winning was the choice to DEVELOP A CNC SOFTWARE INTERNALLY, studied for the specific stone working needs. The result are Machines long lasting, precise and use friendly. Over the years, the high quality level of its products and its first class maintenance services have allowed the Group to reach the number of 9000 cutting and polishing machines installed worldwide, making GMM the world leader in its segment. GMM – Breve storia di un grande successo GMM SpA è stata costituita a Gravellona Toce – Italia, nel 1993. L’Azienda progettava, costruiva e commercializzava macchine per il taglio della pietra, marmo e granito. La sua espansione sui mercati esteri ebbe inizio nel 1997, partendo dall’Europa ed espandendosi in tutto il mondo negli anni successivi. Lo stesso anno venne acquisita GMM International con sede ad Hong Kong. Si ebbe una forte espansione dal 1997 al 2004. Nel 2001 venne costituita la Mectoce, Azienda dedicata alle lavorazioni meccaniche ed ai premontaggi dei gruppi per conto di GMM. Nel 2004 venne costituita GMM USA Inc. a Charlotte NC, per seguire con maggior efficacia la vendita e l’assistenza sul mercato Nord Americano. Nel 2013 GMM amplia notevolmente il suo range produttivo entrando nel mondo della lucidatura con l’acquisizione della CEMAR, Azienda con trentennale esperienza nella progettazione e costruzione di macchine calibratrici e lucidatrici per lastre e piastrelle, di lucidacoste e di linee automatiche per processare lastre e filagne. Nel 2018 GMM group acquista la TECHNI WATERJET, uno dei più importanti produttori al mondo di waterjet ad altra pressione, specializzato nei settori pietra, vetro ed acciaio. Attualmente GMM Group progetta e produce una completa vasta gamma di macchine per processare MARMO, GRANITO, AGGLOMERATI, CERAMICA, CEMENTO, per la realizzazione di piastrelle, rivestimenti, piani da cucina e da bagno, componenti architettonici e per l’arredamento, materiali per l’arte funeraria. LA FILOSOFIA GMM è basata innanzitutto sull’avere costrizioni robuste anche in fusione, sull’utilizzo di componentistica di alta qualità, sotto l’attento e costante controllo dei processi produttivi. Certamente fondamentale e vincente è stata la scelta di sviluppare al proprio interno il SOFTWARE PER CNC , particolarmente studiato per soddisfare le esigenze delle lavorazioni della pietra. Il risultato sono macchine durevoli, precise nel tempo e facili da utilizzare. Negli anni l’alta qualità dei prodotti ha portato il gruppo a installare nel mondo oltre 9000 macchine per il taglio e la lucidatura, rendendo GMM leader nel proprio segmento di mercato.
