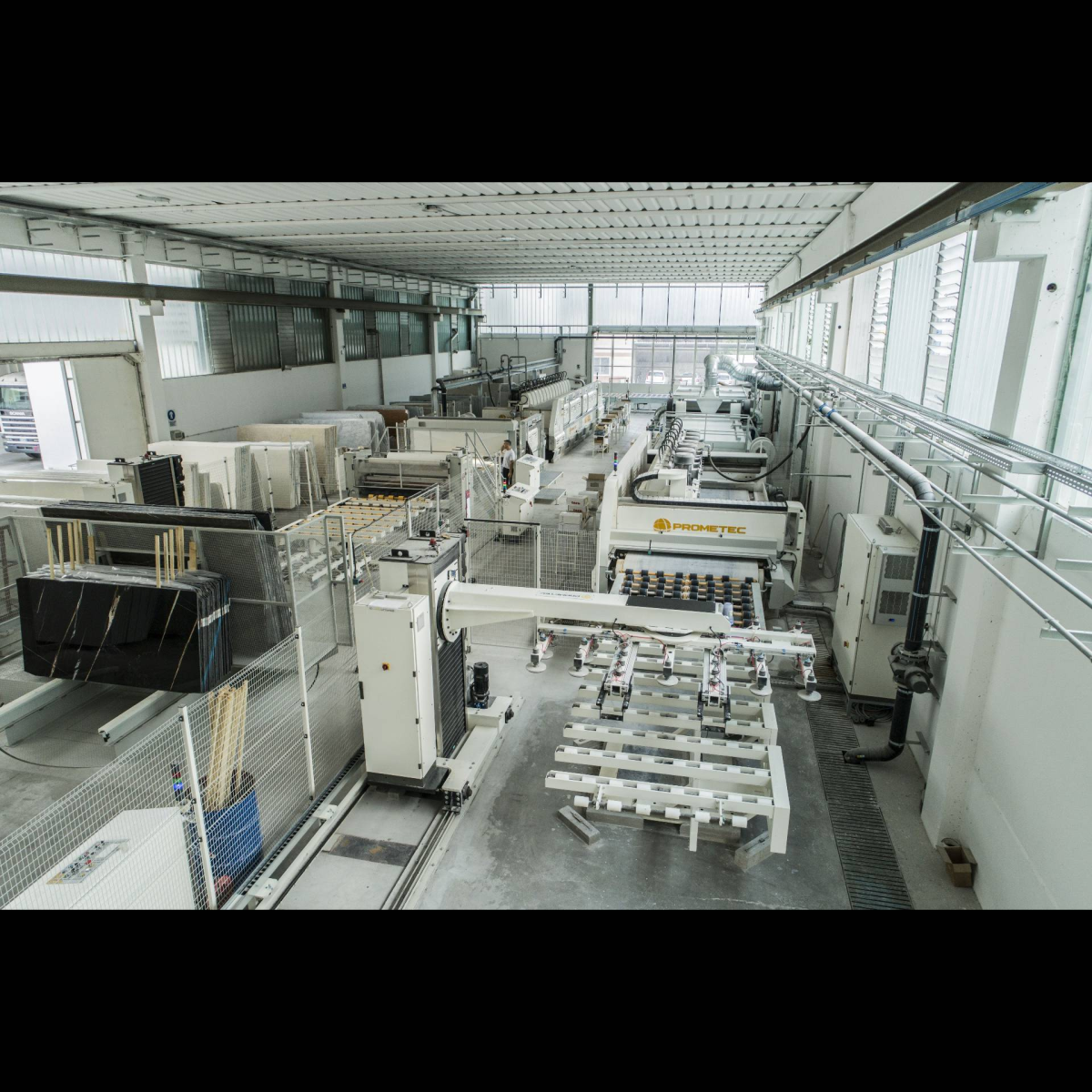

Integrated system for epoxy and polyester resin coating with double grinding and polishing module made with interconnection between production, management and semi-automatic material handling parameters according to the rules of the National Industry 4.0 plan
In detail, the system consists of two separate lines whose interconnection is guaranteed in a semi-automatic way by motorized trolleys supporting slabs controlled by an operator.
Line for Epoxy Resin
Loading and unloading made with Match-type robot for book-matching process and double rotating platform supporting the trolleys with the slabs.
SMART type mixed drying / catalysis oven with a capacity of 10 slabs in the drying section and 20 in the catalysis section, thus guaranteeing a maximum production of 10 slabs per hour in single side
Grinding - Polyester Resining - Polishing Line
Composed of two separate Grinding and Polishing machines for a total of 22 heads (8 + 14) joined by a resin line consisting of a drying oven with IR lamps and forced ventilation, manual resin station, double IR and UV catalysis oven. After the polishing machine, a four-head waxing machine, a scanner, and a protective polyethylene sheet applicator complete the line. Loading and unloading are carried out with Match-type robots for book matching process
