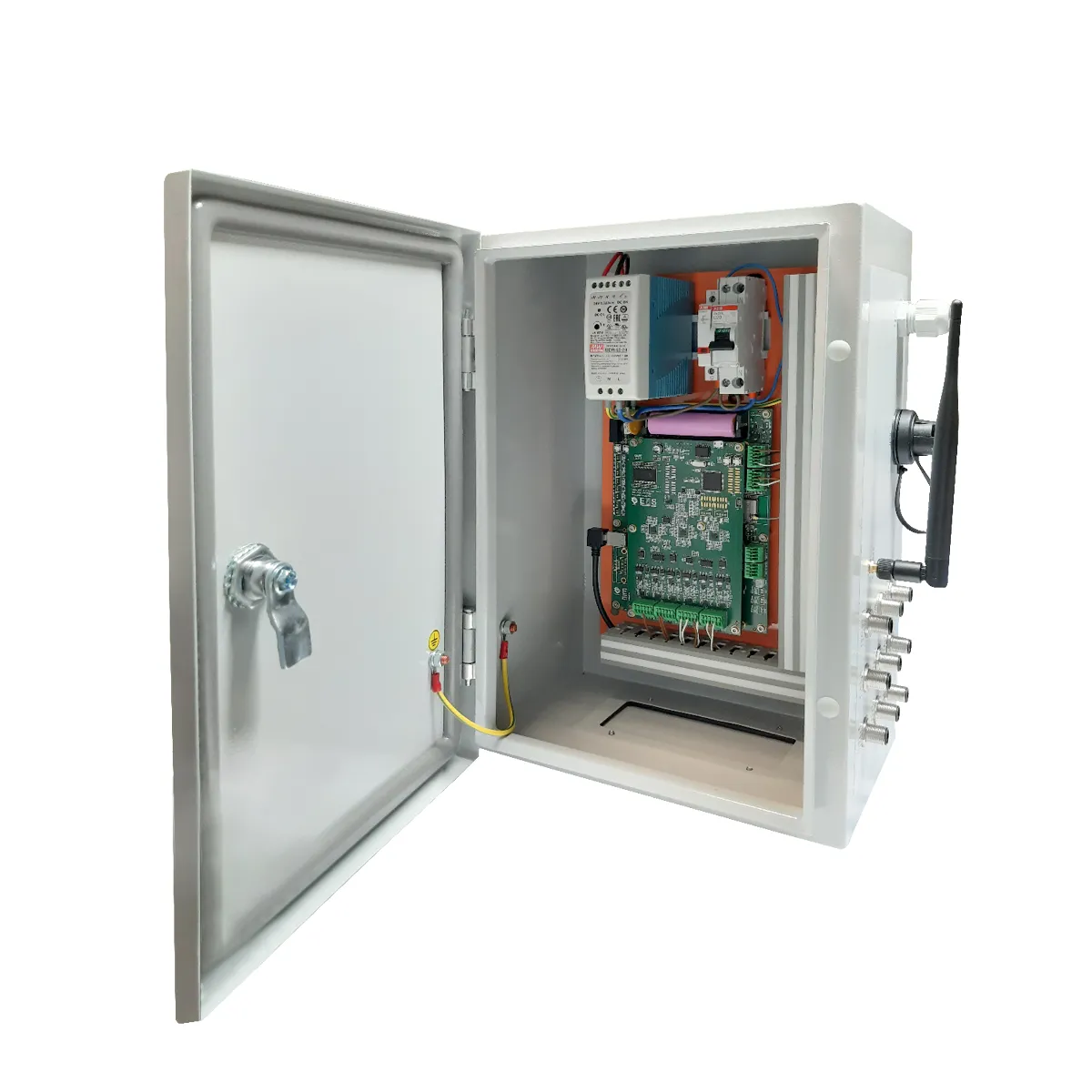

ESMS-ECM Equipment Condition Monitoring System
Enabling IOT
Information
ES Systems has developed a complete smart system solution for condition monitoring of industrial equipment. The ESMS-ECM system features synchronous sensor sampling with wireless communication enabling optimal vibration and condition monitoring of equipment. The wireless capability enables installation at remote locations with minimal installation cost. ESMS-ECM supports WiFi and BLE 4.0 wireless protocols allowing installation and communication integration in existing wireless infrastructures.
ESMS-ECM is the first condition monitoring system worldwide that supports wireless and synchronous multichannel data sampling, a necessary feature for vibration monitoring and frequency pattern analysis. ESMS-ECM can integrate any kind of sensor that communicates with 0-10V, 4-20mA, MODBUS-RTU, RS-232, Digital I/O, I2C.
The data collected from the ESMS-ECM system are transferred to the cloud or to secure servers where end users can execute their predictive maintenance algorithms.
Specifications:
Digital I/Os : 4x inputs, 4x outputs (opto-isolated)
Analog Channels : 4x inputs 0-3.3V, 4-20mA, 12x inputs IEPE
Material : Electrostatic Painted Metal
Mounting : Wall or Ceilling Mounting (4x bolts size M8)
Digital Communication Interfaces : RS-232 (opto-isolated), RS-485 (MODBUS-RTU), I2C (opto-isolated), USB
Wireless Communications : WiFi, BLE 4.0
Power Supply : 220VAC
IP : 65
Weight : 6Kgr
Mechanical Envelope (L x W x H) : 38 x 25 x 18 cm
Operating Temperature : -40C … +85C
