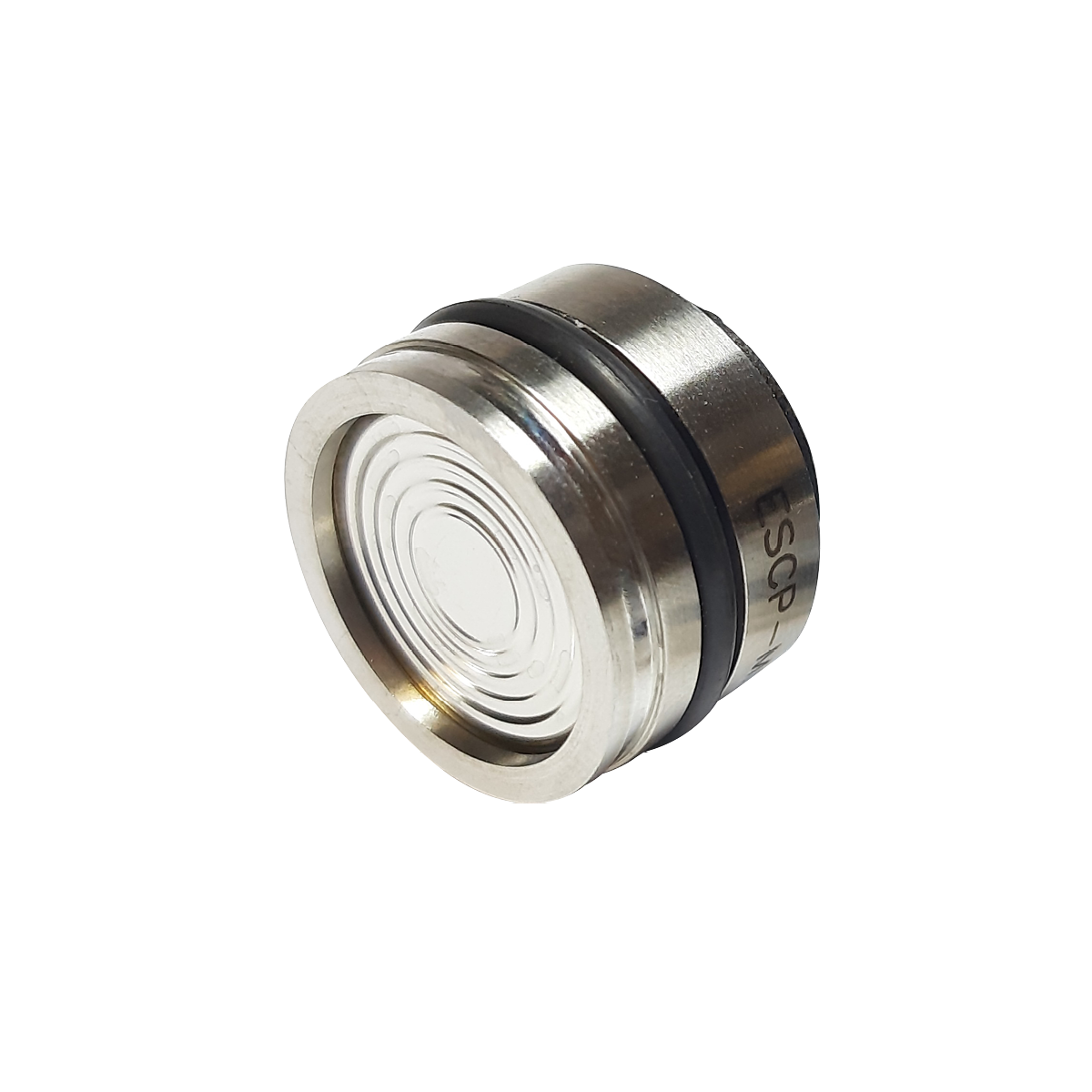

ESCP-MIS1 - Medium Isolated MEMS Capacitive Pressure Sensors

ES Systems has developed a series of medium isolated pressure sensors suitable for applications with harsh environmental conditions where resistance to corrosive fluids or gases is required. Each sensor integrates a MEMS capacitive pressure sensor die, and a CMOS ASIC for the signal conditioning. The MEMS pressure sensor dies are underpinned by ES Systems’ innovative microfabrication process for silicon capacitive sensors. The capacitive pressure sensor dies integrated into the medium isolated pressure systems provide state-of-the-art accuracy and resolution, excellent long-term stability combined with very good repeatability and hysteresis. The total overall error including thermal offsets is lower than ±0.25% FS. The ESCP-MIS1 is a family of pressure sensors in the standard Ø19 stainless steel 316L capsule. In this type of sensors, the pressure is transferred hydraulically to the hermetically sealed sensing element through the oil used to fill the cavity between the sensing element and the stainless-steel diaphragm. The pressure capsule interface is either I2C, SPI or analog. The sensors are provided calibrated and compensated at various temperature and pressure ranges from 10 bara to 350 bara. Custom materials like Hastelloy or Titanium are available upon request. Specifications: Pressure Type: Absolute Pressure Range: Up to 350bar Power Supply: +3.1 to 5.5V Current Consumption, full operation: < 2.3mA Total Error: < ±0.25%FS Operating Temperature: -40C … +125C Compensation Temperature: 0C … +60C, -20C … +85C, -40C … +125C Digital Output: Calibrated Pressure & Temperature Analog Output: Calibrated Pressure Output: I2C, SPI, Analog 0.5 to 2.5V Overpressure Tolerance: Up to 100x Media Compatibility: Gases, Liquids Material Options: SS 316L, Hastelloy, Titanium
