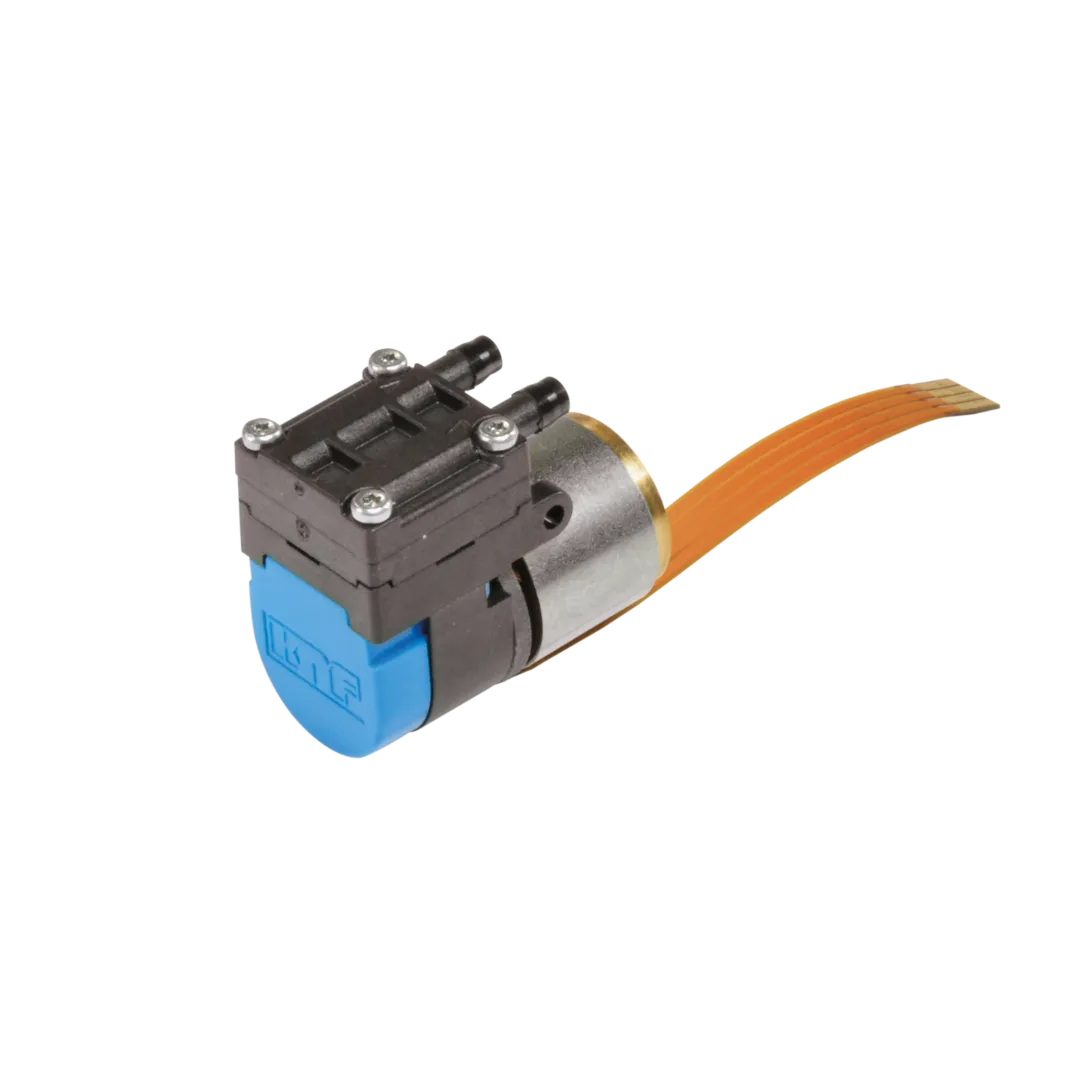

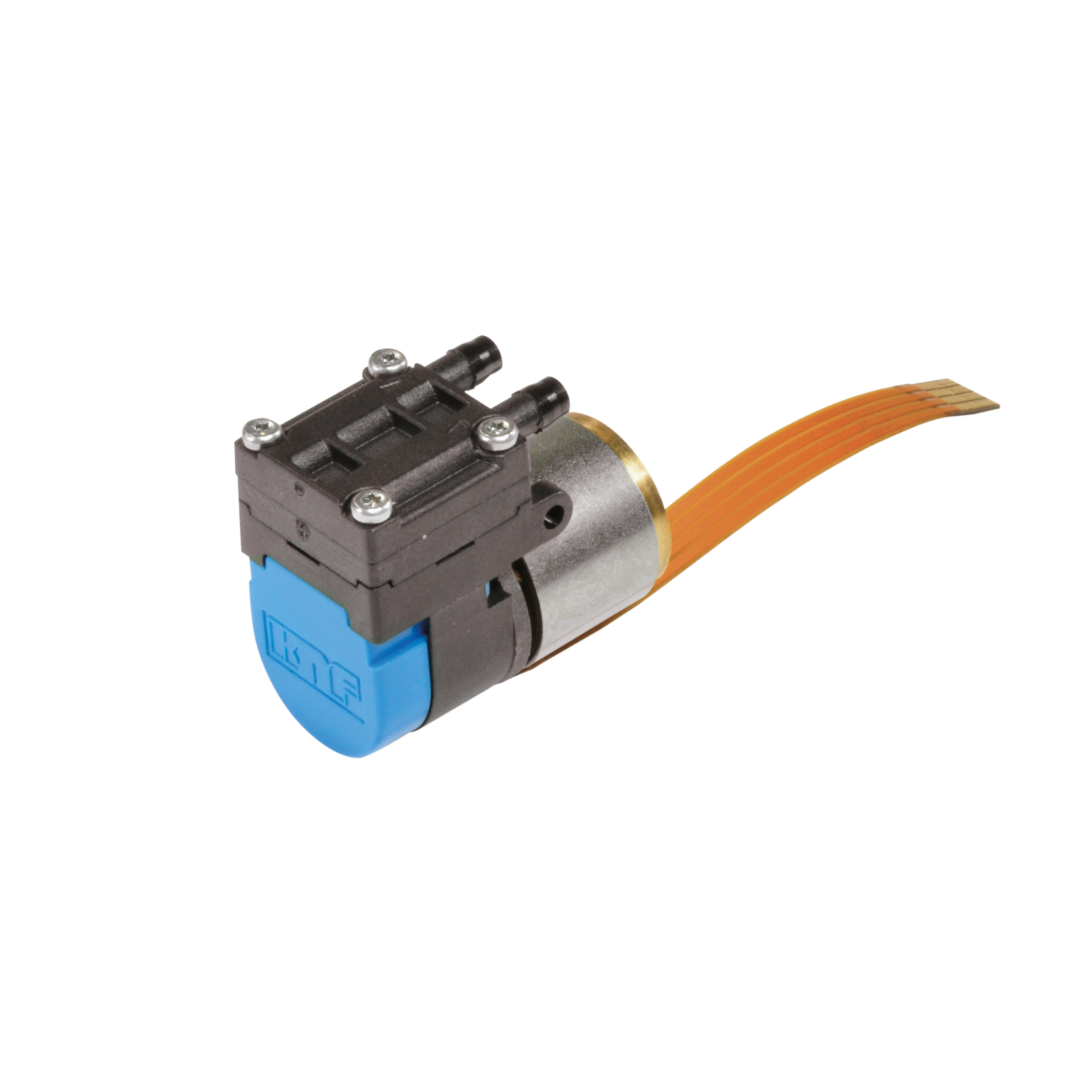

NMP 03 Micro Diaphragm Gas Sampling Pump

NMP 03 – for Mobile/Portable Gas Measurement Technology One of the most important tasks in gas analysis is ensuring occupational health and safety for employees, as well as protecting facilities against explosions and hazardous incidents. Hand-held devices, or mobile analyzers, are often used for this purpose. The requirements for the integrated pumps in terms of size, weight, noise levels and operating current are particularly demanding, as these parameters have a significant impact on the quality of the device. The NMP 03 micro gas sampling pump is specially designed for maximum performance in these areas. Very low power consumption levels conserve battery power, meaning that the gas analyzers benefit from long operating periods without charging. In addition, their intrinsic safety allows them to be used in explosion-proof zones. And the NMP 03 is impressively light and compact, measuring just 11 grams and 24 mm in length. The flow rate is up to 0.33 l/min. The max. positive pressure is 0.33 bar rel. and the ultimate vacuum is up to 600 mbar abs.
